STUDIOBOX
Customise cabins

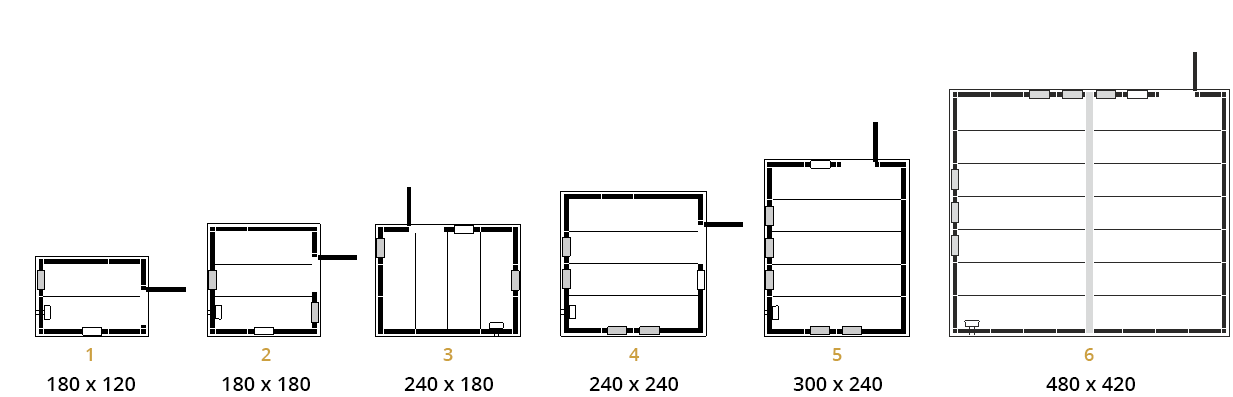

Basic booth sizes 1-6
Length x width in cm (internal grid dimensions)
Here you can see planning examples for frequently requested acoustic booths. The specifications always refer to the internal dimensions of the box. Of course, you can also design your desired box yourself - from the comfort of your own home using our online configurator. This tool can be used to configure boxes up to a size of 480 x 240 x 205 cm (L x W x H).
That's too small for you? Other sizes and layouts are available at any time. We have already built numerous XXL boxes for customers throughout Europe. Our team will be happy to help you with the planning.
Acoustic elements in grid dimension

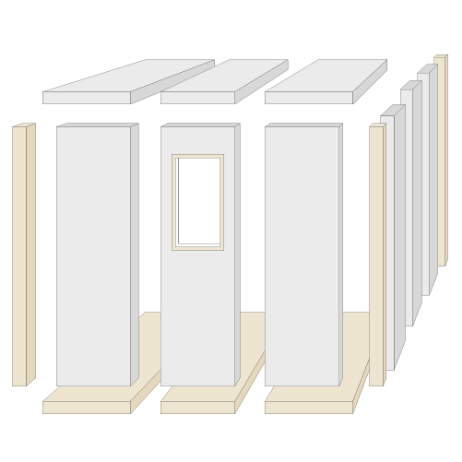

Each STUDIOBOX consists of basic elements in a 60 cm grid. Intermediate sizes, over- and underheights are possible. The positions of windows, doors and cable openings can be freely determined. This gives you the cubicle that best fits into your space. The interior acoustics are firmly applied to the side and ceiling elements (monobloc). All modules are completely prefabricated in the joinery. This minimises the assembly work on site.
The standard internal grid dimensions (180 x 120 x 205 cm) of a STUDIOBOX can also be reduced on special request. There are hardly any limits in the opposite direction; the largest cabin realised to date measures 600 x 480 x 240 cm. However, we do not recommend a box width of more than 480 cm due to the ceiling girder.
Equipment
All STUDIOBOXes contain as standard:
- Sound-insulating wall, floor and ceiling elements
- Interior acoustics applied to basic elements:
Premium
Professional
Standard - Defined reverberation time per booth model
- 1 window (small)
- 1 door element (without glass)
- Floor construction (impact sound-insulated)
- Carpeting inside
- Natural ventilation/Ventilation unit
- Power connection
- Inside cable gap (Professional and Premium models)
Additional equipment (extra charge):
Studio glass door
Studio window elements in different heights and widths
Height-optimised floor (barrier-free)
Air conditioning
We are happy to fulfil special requests (e.g. visual design, branding, etc.). As STUDIOBOXes are manufactured in two carpentries in Austria and Germany, almost any request is possible.

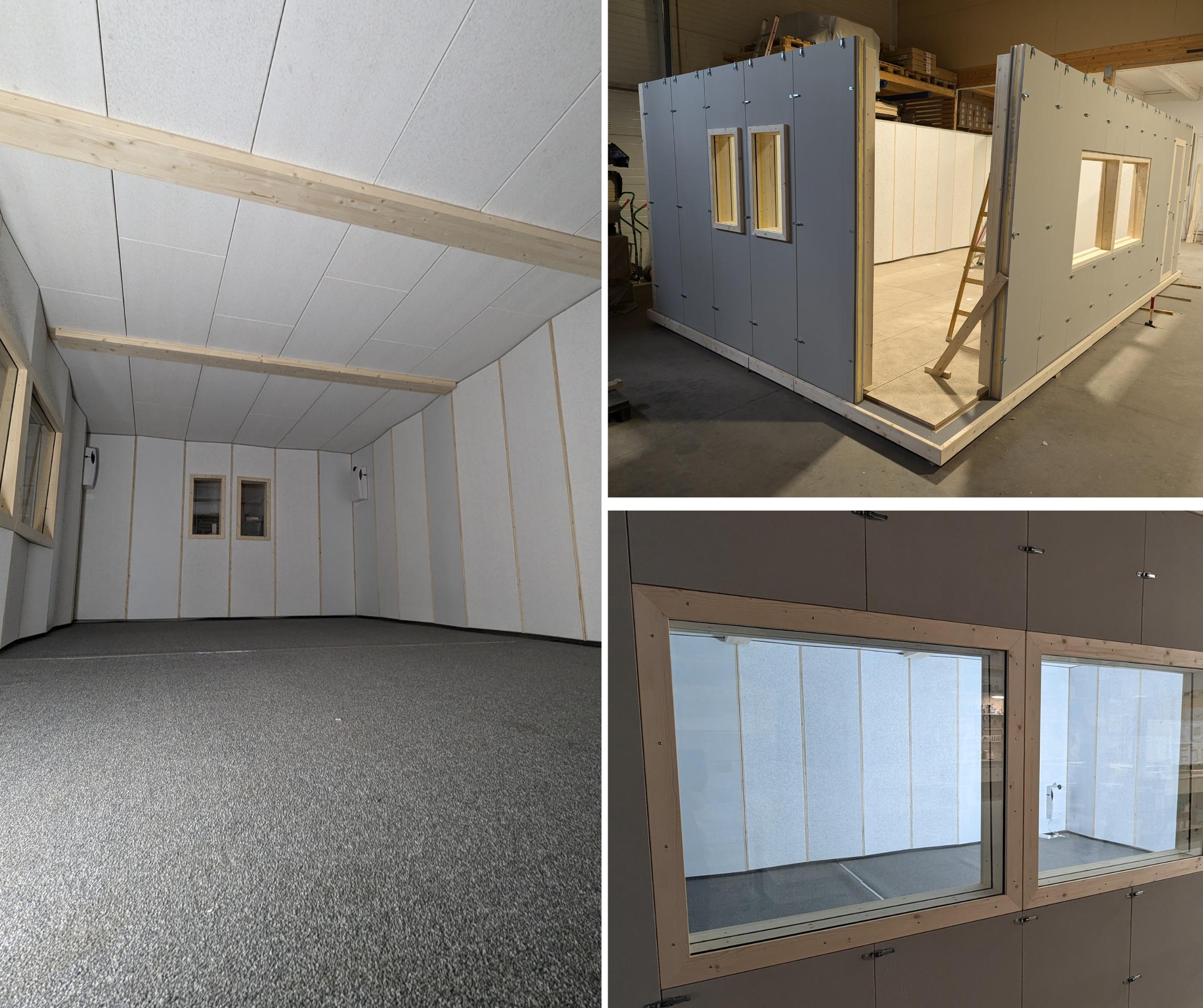

STUDIOBOX in XXL format
From advertising shots to research: more and more customers are realising their projects in extra-large STUDIOBOXes. We have already built a large number of such XXL boxes in recent years, the largest to date is almost 9 metres long.
The photo example shows a PROFESSIONAL model (internal grid dimensions: 660 x 360 x 240 cm). This box was manufactured in 2025 for a fitness centre chain in Germany. The studio window extends over four wall elements. There are two additional windows on one of the two front sides.
